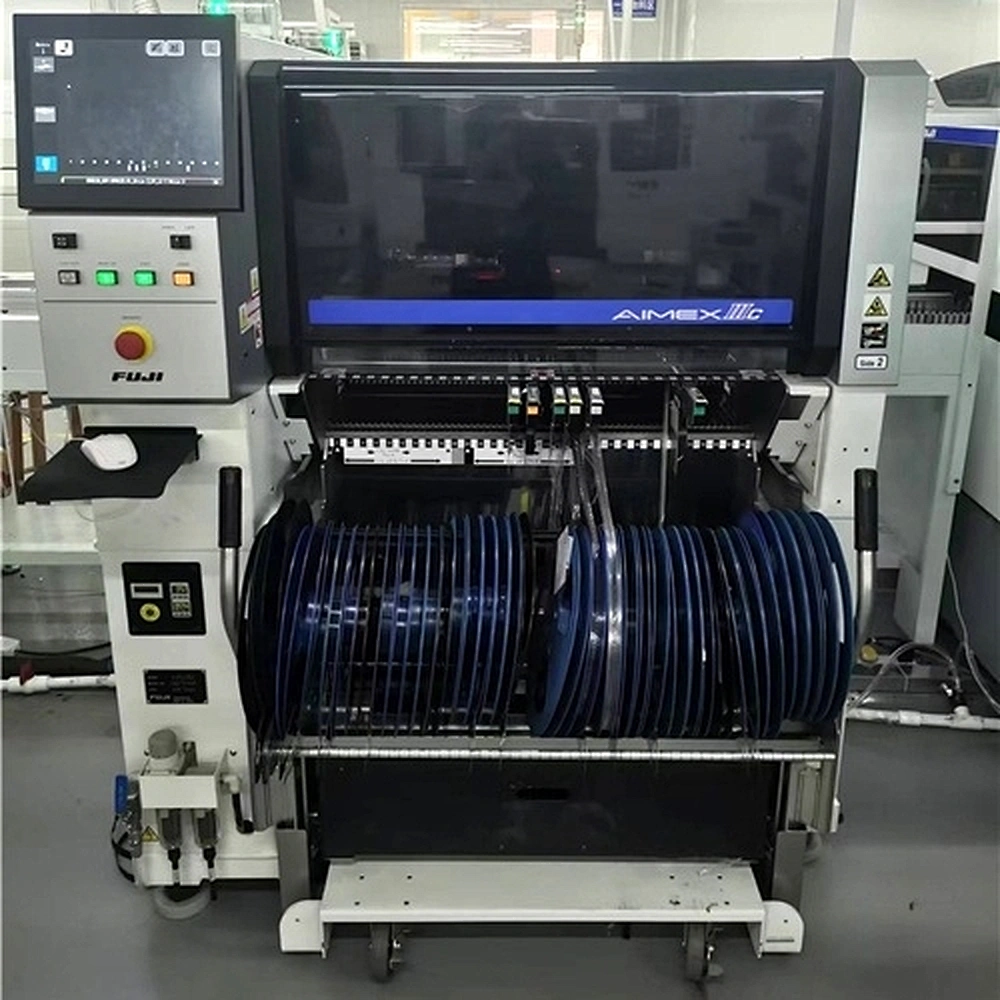

FUJI AIMEX IIIC SMT Pick and Place Machine
FUJI AIMEX IIIC
Quantity
FUJI AIMEX IIIC SMT Pick and Place Machine
Company Profile:
Extension Company was established in 2009, a SMT electronic manufacturing service company.
Service customers involved in EMS electronics manufacturing products in various areas. Like smart phone, automotive electronics, earphones, air conditioners, computers and communication tools. These product's workshop planning, production management, quality control and efficiency improvement.
Extension providing SMT solutons including SMT line, SMT machine, SMT stencil printer, reflow oven, wave soldering machine, and THT insertion Machine.
Successful Experience:
Extension's Customer in 60 Countries Around the World
1. We have been helping customers to build a lot of new factories and increase productivity around the world.
2. We help customers solve machine production problems quickly.
3. Became the most reliable SMT partner for you.
For SMT Factory Setup or increase productivity, we can do for you:
1. We provide full SMT solution for You.
2. We provide continuous and reliable supply of spare parts.
3. We provide installation and training services for SMT line.
4. We have wealthy experience on SMT Factory Setup.
5. We can solve SMT problems for you.
FAQ:
Q: What we can do for you?
A: Total SMT Machines and Solution, professional Technical Support and Service.
Q: What brand of machines do you supply?
A: Famous brand. Such as FUJI, ASM, Panasonic, Samsung, JUKI, Yamaha, Heller, DEK, etc.
Q: What is your delivery date?
A. The delivery date is about 30 days after receipt of payment
Q: What your main customers?
A:OSRAM, HUAWEI, TESLA, Inventec, Samsung, Hisense, Foxconn
Q: Why choose us?
A: Leading SMT Supplier in China; Wealthy SMT experience; Professional after-sales service team.
Extension's exhibition moments：
Packaging:
| Basic Specifications | ||
|---|---|---|
| PCB size(LXW) |
| |
| Feeder capacity | Up to 130 (8 mm tape) | |
| PCB load time | 2.9 sec | |
| Placing accuracy (Fiducial mark based referencing) | H24G: +/-0.025 mm (Standard mode) / +/-0.038 mm (Productivity priority mode, under development) (3sigma) cpk≥1.00 H08M: +/-0.040 mm (3σ) cpk≥1.00 OF: +/-0.050 mm (3σ) cpk≥1.00 H02F: +/-0.025 mm (3σ) cpk≥1.00 H01: +/-0.030 mm (3σ) cpk≥1.00 | |
| Machine dimensions | L: 1280mm, W: 2656mm, H: 1556mm | |
| Placing heads | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| H24G | H08M | H02F | H01 | OF | |||||||
| Nozzle quantity | 24 | 8 | 2 | 1 | 1 (or 1 claw) | ||||||
| Throughput(cph) | 37,000 cph (Productivity priority mode, under development) 35,000 cph (Standard mode) | 13,000 | 7,300 | 4,200 | 3,000 | ||||||
| Part size (mm) | 03015 mm to 5 x 5 Height: Up to 2.0 mm | 0603 (0201") to 45 x 45 Height: Up to 13.0 mm | 1608 (0603") to 74 x 74 (32 x 180) Height: Up to 25.4 mm | 1608 (0603") to 74 x 74 (32 x 180) Height: Up to 38.1 mm | |||||||
| Part presence check | ○ | ○ (H08MQ) | ○ | x | |||||||
| Parts supply | Tape | ○ | ○ | ○ | ○ | ||||||
| Stick | x | ○ | ○ | ○ | |||||||
| Tray | x | ○ | ○ | ○ | |||||||
| DynaHead(DX) | ||||
|---|---|---|---|---|
| Nozzle quantity | 12 | 4 | 1 | |
| Throughput(cph) | 27,000 Parts presence function ON: 26,000 | 12,000 | 5,800 | |
| Part size (mm) | 0402 (01005") to 12.5 mm diagonally and Y is 7.5 mm or less Height: Up to 3.0 mm | 1608 (0603") to 15 x 15 Height: Up to 6.5 mm | 1608 (0603") to 74 x 74 (32 x 100) Height: Up to 25.4 mm | |
| Placing accuracy (Fiducial mark based referencing) | +/-0.038 (+/-0.050) mm (3σ) cpk≥1.00 | +/-0.040 mm (3σ) cpk≥1.00 | +/-0.030 mm (3σ) cpk≥1.00 | |
| Part presence check | o | x | o | |
| Parts supply | Tape | o | o | o |
| Stick | x | o | o | |
| Tray | x | o | o | |
