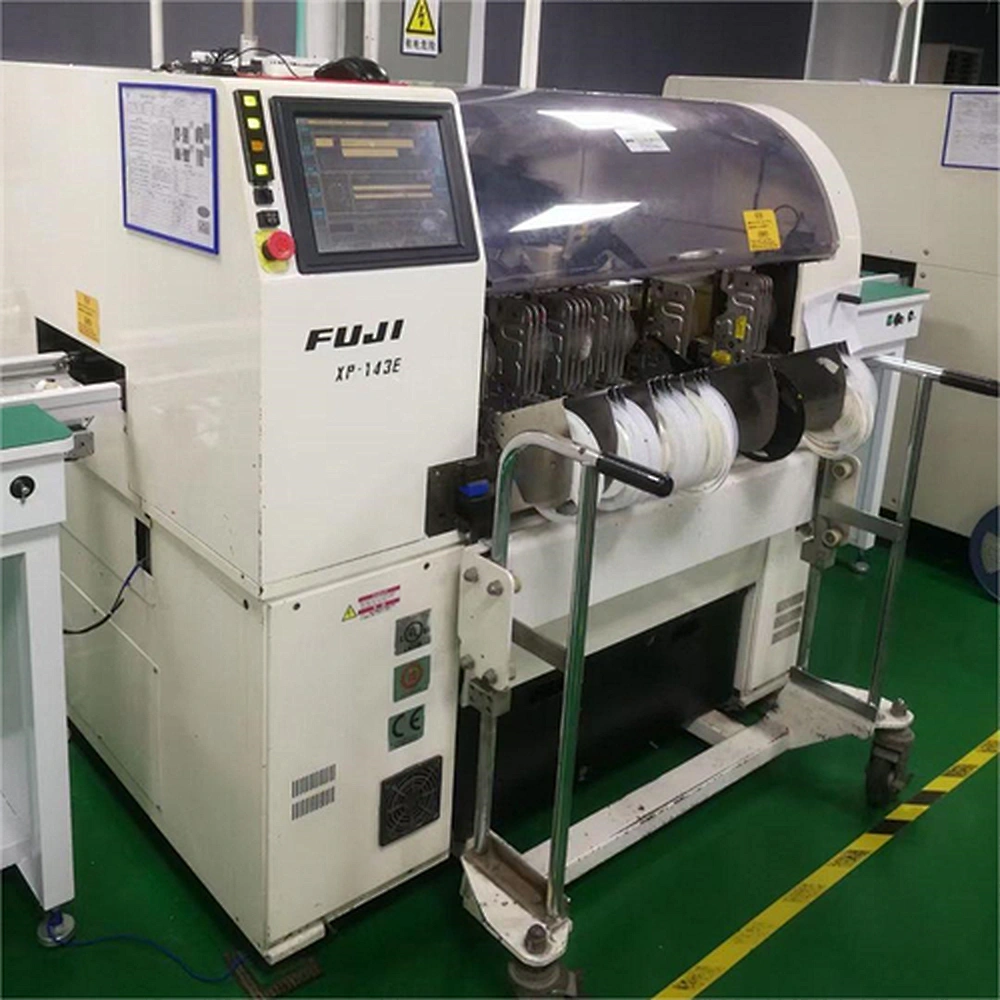

FUJI XP243E SMT Pick and Place Machine
FUJI-XP-243E
1. Multifunctional, high-speed, high-precision, compact design holographic small universal placement machine;
2. Mount 0603 (0201) chip;
3. Expand the number of nozzles stored, and you can always have nozzles or mechanical fixtures;
4. It can correspond to a wide range of chip components to various special-shaped components;
5. Equipped with a buffer function on the sending side and a non-exhaust patch function;
6. Support trial production.
Fuji XP243E parameters
Mounting speed: 0.43 seconds/piece, 8,370 pieces/hour: rectangular components; 0.56/sec/piece, 6,420 pieces/hour: IC, etc.
Patch accuracy: 0.025mm;
Target component: 0603-45mm*150mm Maximum height: 25.4mm
Applicable substrate: maximum 457x356mm, minimum 50x50mm, thickness 0.3-4mm;
Material rack support: front and rear feeding, 40 people on the front side, there are two options on the rear side: 10 kinds of 10 layers and 20 kinds of 10 layers;
Component types: front side: up to 40 types; rear side: 10 types, 10 layers/20 types, 10 layers
Circuit board loading time: 4.2 seconds
Language support: Chinese, English, Japanese;
Program editing: support online programming and offline programming at the same time;
Machine size: L: 1,500mm/W: 1,560mm/H: 1,537mm (excluding signal tower)
Machine weight: about 2,800KG (main body)
Company Profile:
Extension Company was established in 2009, a SMT electronic manufacturing service company.
Service customers involved in EMS electronics manufacturing products in various areas. Like smart phone, automotive electronics, earphones, air conditioners, computers and communication tools. These product's workshop planning, production management, quality control and efficiency improvement.
Extension providing SMT solutons including SMT line, SMT machine, SMT stencil printer, reflow oven, wave soldering machine, and THT insertion Machine.
Successful Experience:
Extension's Customer in 60 Countries Around the World
1. We have been helping customers to build a lot of new factories and increase productivity around the world.
2. We help customers solve machine production problems quickly.
3. Became the most reliable SMT partner for you.
For SMT Factory Setup or increase productivity, we can do for you:
1. We provide full SMT solution for You.
2. We provide continuous and reliable supply of spare parts.
3. We provide installation and training services for SMT line.
4. We have wealthy experience on SMT Factory Setup.
5. We can solve SMT problems for you.
FAQ:
Q: What we can do for you?
A: Total SMT Machines and Solution, professional Technical Support and Service.
Q: What brand of machines do you supply?
A: Famous brand. Such as FUJI, ASM, Panasonic, Samsung, JUKI, Yamaha, Heller, DEK, etc.
Q: What is your delivery date?
A. The delivery date is about 30 days after receipt of payment
Q: What your main customers?
A:OSRAM, HUAWEI, TESLA, Inventec, Samsung, Hisense, Foxconn
Q: Why choose us?
A: Leading SMT Supplier in China; Wealthy SMT experience; Professional after-sales service team.
