Panasonic CM402 SMT Pick and Place Machine
Panasonic CM402
Quantity

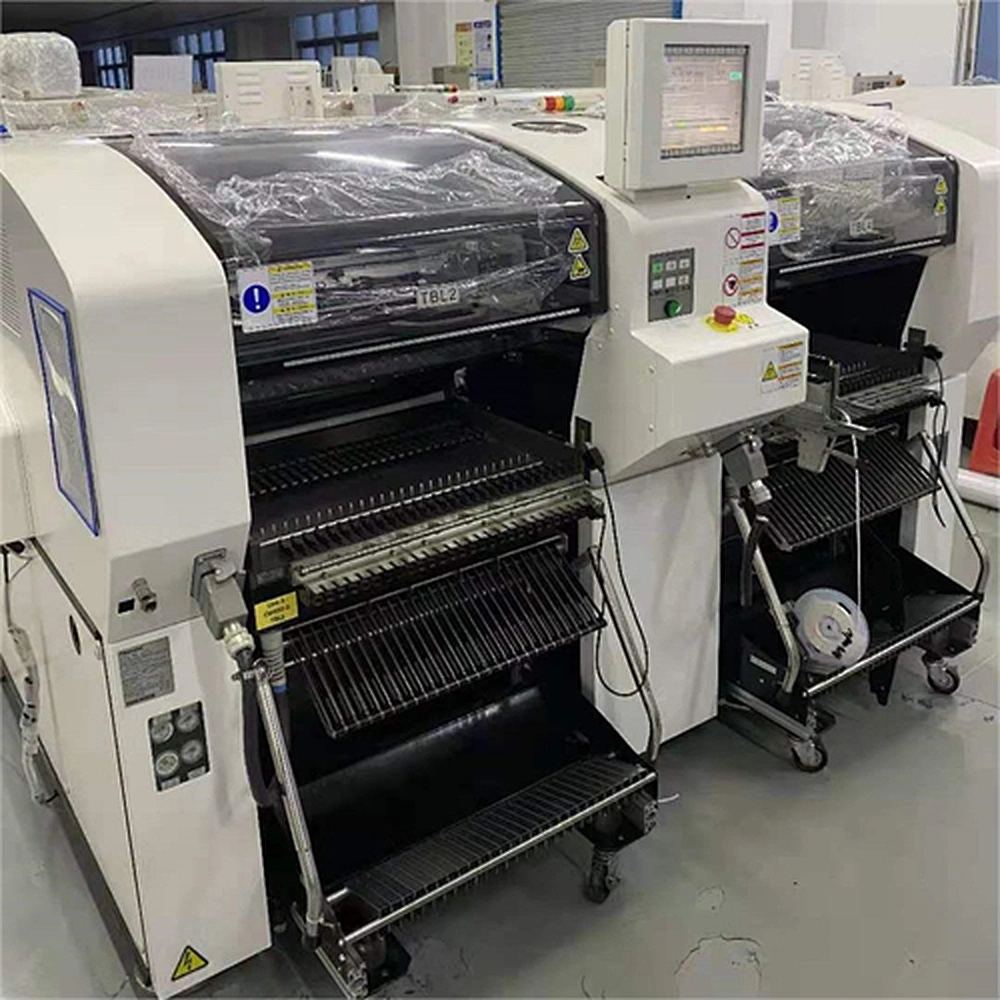

Panasonic CM402-M SMT Pick and Place Machine
Supports wide range of chips, from 0201 chips to 24mm square components in high-speed mode and 0201 chips to
90mm X 100mm in multi-function mode
Up to 60,000 components per hour
216 feeder inputs (using 8mm dual)
Gang feeder exchange
Dual lane capability
| Description | |
| MODEL ID: | CM402-M pick and place machine |
| MODEL NUMBER: | KXF-4Y3C |
| PCB DIMENSIONS: | L 50 mm x W 50mm to L 330 mm × W 250 mm |
| HEAD TYPE: | Type A-2 (12/12 nozzles HIGH-SPEED) (OPTION) |
| Number of nozzles: | 12 nozzles/head |
| Maximum speed: | 0.052 s/chip (69,500 cph) |
| Placement accuracy: | ±40um/chip |
| Component dimensions: | (01005")0402 chip to L 12mm x W12mm xT6.5mm |
| HEAD TYPE: | 8+8 HIGH-SPEED (OPTION) |
| Number of nozzles: | 8 nozzles/head |
| Maximum speed: | 0.06 s/chip (60,000 cph) |
| Placement accuracy: | ±50um/chip |
| Component dimensions: | 0201 (0603) C, R to L 24 mm × W 24 mm |
| HEAD TYPE: | 8+3 MULTI FUNCTION (OPTION) |
| Number of nozzles: | 3 nozzles/head |
| Maximum speed: | 0.21 s/QFP (17,140 cph) |
| Placement accuracy: | ±0.035 mm/QFP |
| Component dimensions: | 0402 (1005) C, R to L 100 mm × W 90 mm |
| PCB EXCHANGE TIME: | 0.9 s (board length: up to 240 mm) |
| ELECTRIC SOURCE: | 3-phase AC 200 V ±10 V / AC 400 V ±10 V, 2.5 kVA |
| PNEUMATIC SOURCE: | 490 kPa, 150 L/min (standard, machine body only) |
| DIMENSIONS | W 2,350 mm x D 2,460 mm x H 1,430 mm |
| MASS | 2,700 kg |
