Panasonic NPM-D3 SMT Pick and Place Machine

High area productivity with total mounting lines
Higher productivity and quality with printing, placement and inspection process integration

Configurable modules allow flexible line setup
Head location flexibility with plug-and-play functions.

Comprehensive control of lines, floor and factory with system software
Production plan support through line operation monitoring.

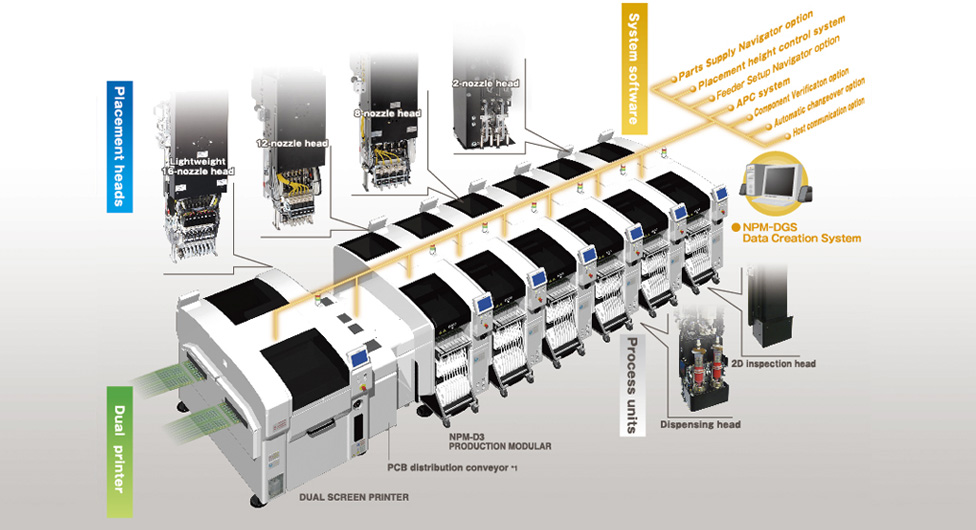

Total line solution

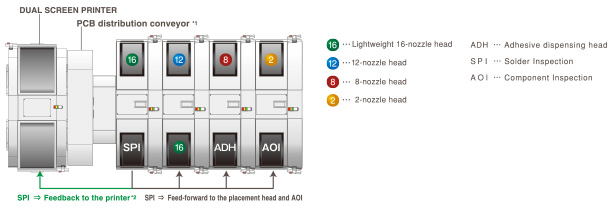

Smaller-footprint modular lines by installing inspection heads

Provides high-quality manufacturing with in-line inspection

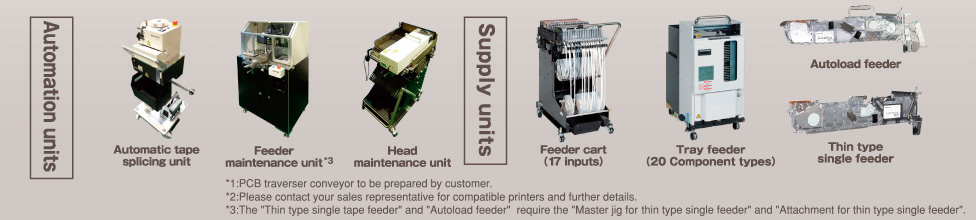

*1:PCB traverser conveyor to be prepared by customer.
*2:Please contact your sales representative for compatible printers and further details.

Multi-Production Line

Mixed production with different type substrates on the same line is also provided with the dual conveyor.



Model ID NPM-D3 Rear head Front head Lightweight 16-nozzle head 12-nozzle head 8-nozzle head 2-nozzle head Dispensing head No head Lightweight 16-nozzle head NM-EJM6D NM-EJM6D-MD NM-EJM6D 12-nozzle head 8-nozzle head 2-nozzle head Dispensing head NM-EJM6D-MD - NM-EJM6D-D Inspection head NM-EJM6D-MA NM-EJM6D-A No head NM-EJM6D NM-EJM6D-D - PCB dimensions*1 (mm) Dual-lane mode L 50 x W 50 ~ L 510 x W 300 Single-lane mode L 50 x W 50 ~ L 510 x W 590 PCB exchange time Dual-lane mode 0 s* *No 0s when cycle time is 3.6 s or less Single-lane mode 3.6 s* *When selecting short conveyors Electric source 3-phase AC 200, 220, 380, 400, 420, 480 V 2.7 kVA Pneumatic source *2 0.5 MPa, 100 L /min (A.N.R.) Dimensions *2 (mm) W 832 x D 2 652 *3 x H 1 444 *4 Mass 1 680 kg (Only for main body:This differs depending on the option configuration.)

Placement head Lightweight 16-nozzle head (Per head) 12-nozzle head (Per head) 8-nozzle head (Per head) 2-nozzle head (Per head) High production mode [ON] High production mode [OFF] Max. speed 42 000 cph (0.086 s/ chip) 38 000 cph (0.095 s/ chip) 34 500 cph (0.104 s/ chip) 21 500 cph (0.167 s/ chip) 5 500 cph (0.655 s/ chip) 4 250 cph (0.847 s/ QFP) Placement accuracy (Cpk1) ± 40 µm/chip ±30 μm / chip (±25 μm / chip*5) ±30 μm / chip ± 30 µm/chip ± 30 µm/QFP 12mm to 32mm ± 50 µm/QFP 12mm Under ± 30 µm/QFP Component dimensions (mm) 0402 chip*6 to L 6 x W 6 x T 3 03015*6*7/0402 chip*6 to L 6 x W 6 x T 3 0402 chip*6 to L 12 x W 12 x T 6.5 0402 chip*6 to L 32 x W 32 x T 12 0603 chip to L 100 x W 90 x T 28 Component supply Taping Tape : 4 / 8 / 12 / 16 / 24 / 32 / 44 / 56 mm Tape : 4 to 56 / 72 / 88 / 104 mm Max. 68 (4, 8 mm tape, Small reel) Stick - Max.16 (Single stick feeder) Tray - Max.20 (per tray feeder)

Dispensing head Dot dispensing Draw dispensing Dispensing speed 0.16 s/dot (Condition : XY=10 mm, Z=less than 4 mm movement, No θ rotation) 4.25 s/component (Condition: 30 mm x 30 mm corner dispensing)*8 Adhesive position accuracy (Cpk1) ± 75 μ m /dot ± 100 μ m /component Applicable components 1608 chip to SOP,PLCC,QFP, Connector, BGA, CSP SOP,PLCC,QFP, Connector, BGA, CSP

Inspection head 2D inspection head (A) 2D inspection head (B) Resolution 18 µm 9 µm View size (mm) 44.4 x 37.2 21.1 x 17.6 Inspection processing time Solder Inspection *9 0.35s/ View size Component Inspection *9 0.5s/ View size Inspection object Solder Inspection *9 Chip component : 100 μm x 150 μm or more (0603 mm or more) Package component : φ150 μm or more Chip component : 80 μm x 120 μm or more (0402 mm or more) Package component : φ120 μm or more Component Inspection *9 Square chip (0603 mm or more), SOP, QFP (a pitch of 0.4 mm or more), CSP, BGA, Aluminum electrolysis capacitor, Volume, Trimmer, Coil, Connector*10 Square chip (0402 mm or more), SOP, QFP (a pitch of 0.3 mm or more), CSP, BGA,Aluminum electrolysis capacitor, Volume, Trimmer, Coil, Connector*10 Inspection items Solder Inspection *9 Oozing, blur, misalignment, abnormal shape, bridging Component Inspection *9 Missing, shift, flipping, polarity, foreign object inspection *11 Inspection position accuracy *12 ( Cpk1) ± 20 μm ± 10 μm No. of inspection Solder Inspection *9 Max. 30 000 pcs./machine (No. of components : Max. 10 000 pcs./machine) Component Inspection *9 Max. 10 000 pcs./machine
