Panasonic RL131 insertion machine
Panasonic RL131
Quantity
Higher insertion speed and operation efficiency improve productivity
- Either one of 2-pitch (2.5mm/5.0mm), 3-pitch (2.5mm/5.0mm/7.5mm) or 4-pitch (2.5mm/5.0mm/7.5mm/10.0mm) spec. can be selected for insertion pitch.
- Realized high speed insertion at a rate of between 0.25 s and 0.6 s per component. even for large-size components with 3-pitch (2.5mm/5.0mm/7.5mm) or 4-pitch (2.5mm/5.0mm/7.5mm/10.0mm) spec.
- The use of guide pins makes high-density insertion possible when there is a gap between components.

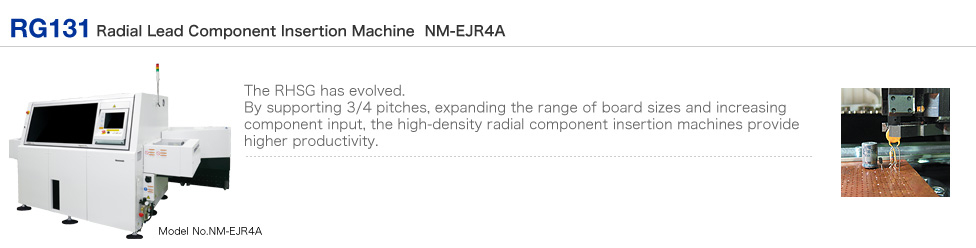

| Model ID | RG131 |
| Model No. | NM-EJR4A |
| PCB dimensions (mm) | L 50 x W 50 to L 508 x W 381 |
| Max. speed *1 | 0.25 s/component to 0.6 s/component |
| No.of component inputs | 80 (Connection mode), 40 + 40 (Exchange mode) |
| Applicable components | Pitch 2.5 mm, 5.0 mm, 7.5 mm, 10.0 mm Height Hn=Max. 26 mm Diameter D=Max. 18 mm Resistor, Electrolytic capacitor, Ceramic capacitor, LED, Transistor, Filter, Resistor network |
| PCB exchange time | about 2 s to about 4 s (Room temperature 20°C) |
| Insertion direction | 4 directions (0 °, 90 °, -90 °, 180 °) |
| Electric source *2 | 3-phase AC 200 V, 3.5 kVA |
| Pneumatic source | 0.5 MPa, 80 L/min (A.N.R.) |
| Dimensions (mm) | W 3 200 x D 2 417 x H 1 620 *3 |
| Mass | 2 350 kg |
Company Profile:
Extension Company was established in 2009, a SMT electronic manufacturing service company.
Service customers involved in EMS electronics manufacturing products in various areas. Like smart phone, automotive electronics, earphones, air conditioners, computers and communication tools. These product's workshop planning, production management, quality control and efficiency improvement.
Extension providing SMT solutons including SMT line, SMT machine, SMT stencil printer, reflow oven, wave soldering machine, and THT insertion Machine.
Successful Experience:
Extension's Customer in 60 Countries Around the World
1. We have been helping customers to build a lot of new factories and increase productivity around the world.
2. We help customers solve machine production problems quickly.
3. Became the most reliable SMT partner for you.
For SMT Factory Setup or increase productivity, we can do for you:
1. We provide full SMT solution for You.
2. We provide continuous and reliable supply of spare parts.
3. We provide installation and training services for SMT line.
4. We have wealthy experience on SMT Factory Setup.
5. We can solve SMT problems for you.
FAQ:
Q: What we can do for you?
A: Total SMT Machines and Solution, professional Technical Support and Service.
Q: What brand of machines do you supply?
A: Famous brand. Such as FUJI, ASM, Panasonic, Samsung, JUKI, Yamaha, Heller, DEK, etc.
Q: What is your delivery date?
A. The delivery date is about 30 days after receipt of payment
Q: What your main customers?
A:OSRAM, HUAWEI, TESLA, Inventec, Samsung, Hisense, Foxconn
Q: Why choose us?
A: Leading SMT Supplier in China; Wealthy SMT experience; Professional after-sales service team.
Extension's exhibition moments：
