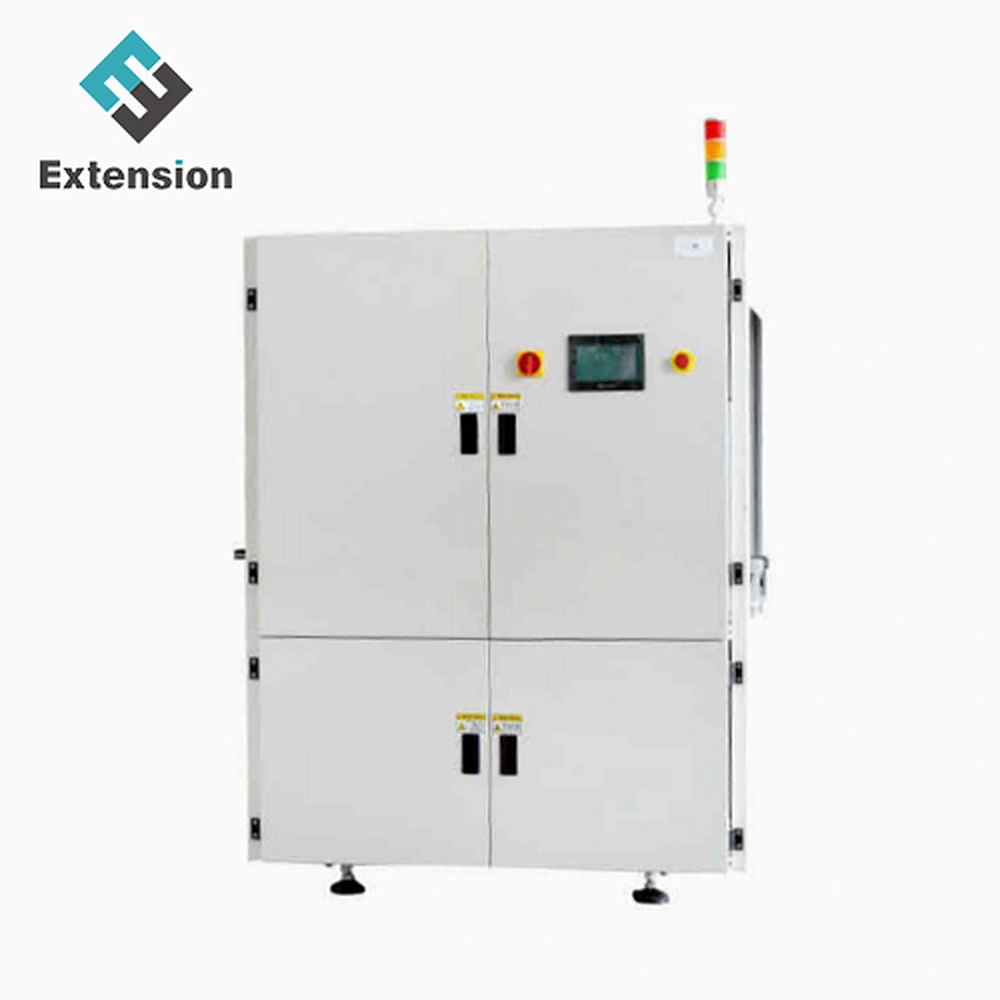

PCB Cycle loader
L1200-XH
This equipment is suitable for the load board operation of the lamp strip product
Quantity
| Description | This device is suitable for the upper plate operation of the light bar product, and the circulating structure does not need to be changed | Transfer Belt Type | Industrial anti-static belt transmission |
| PCB Board Time | Less than 10S | Power Source&Consumption | 100-230V AC, buffer time can be set to single phase up to 300 volts |
| Air Source&Consumption | 4-6 Bar, up to 10 l/min | Conveyor Height | 920±20 (or user specified) |
| Conveyor Direction | Left → right or right → left (customer specified) |
Features
1. Suitable for lamp bar products, Ultra-long PCB size,
2. No need to change the frame and lift the magazine.Effectively avoid the risk of rise and fall of the board
3. Use PLC + touch screen control, easy to operate.Stable control, touch screen can display troubleshooting instructions
4. Combined transmission of stainless steel roller and industrial anti-static belt reduces friction and noise brought
by transmission and makes it quieter
Technical parameters
Description: this equipment is suitable for the load board operation of the lamp strip product, the circulating
structure does not need changing magazine
Conveyor belt type: industrial anti-static belt
PCB load time: less than 10S
Power supply and load: 100-230V AC (user specified), single phase, maximum 300 volts
Air pressure&consumption : 4-6 bar, maximum 10 l/min
Transport height :910±20mm(customer specified)
Transport direction:Left-right or right-left and (to be specified)
Company Profile:
Extension Company was established in 2009, a SMT electronic manufacturing service company.
Service customers involved in EMS electronics manufacturing products in various areas. Like smart phone, automotive electronics, earphones, air conditioners, computers and communication tools. These product's workshop planning, production management, quality control and efficiency improvement.
Extension providing SMT solutons including SMT line, SMT machine, SMT stencil printer, reflow oven, wave soldering machine, and THT insertion Machine.
Successful Experience:
Extension's Customer in 60 Countries Around the World
1. We have been helping customers to build a lot of new factories and increase productivity around the world.
2. We help customers solve machine production problems quickly.
3. Became the most reliable SMT partner for you.
For SMT Factory Setup or increase productivity, we can do for you:
1. We provide full SMT solution for You.
2. We provide continuous and reliable supply of spare parts.
3. We provide installation and training services for SMT line.
4. We have wealthy experience on SMT Factory Setup.
5. We can solve SMT problems for you.
FAQ:
Q: What we can do for you?
A: Total SMT Machines and Solution, professional Technical Support and Service.
Q: What brand of machines do you supply?
A: Famous brand. Such as FUJI, ASM, Panasonic, Samsung, JUKI, Yamaha, Heller, DEK, etc.
Q: What is your delivery date?
A. The delivery date is about 30 days after receipt of payment
Q: What your main customers?
A:OSRAM, HUAWEI, TESLA, Inventec, Samsung, Hisense, Foxconn
Q: Why choose us?
A: Leading SMT Supplier in China; Wealthy SMT experience; Professional after-sales service team.
Extension's exhibition moments：
Packaging:
