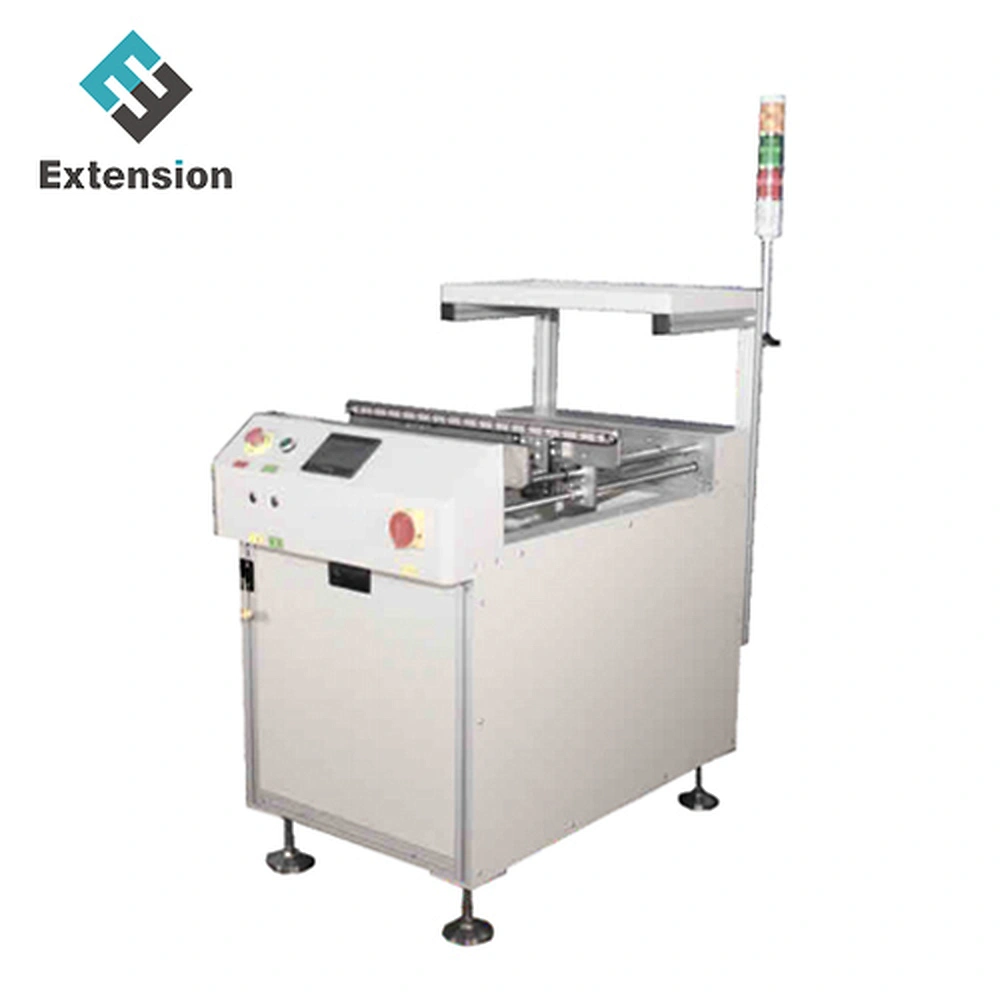

PCB Heavy board conveyor

Model NO. C50-DZ/C50L-DZ

This equipment is used for connection for SMT and AL production line ,PCB transfer, inspect, test or electronic component manual plug-in

Quantity

Description	This device is used for connection between SMT and AL production lines, PCB transfer, inspection, testing or manual insertion of electronic components.	Transfer Belt Type	Round belt or flat belt
Power Source&Consumption	100-230V AC (user specified), single phase，50 volts maximum	Air Source&Consumption	4-6bar, up to 30 liters / minute
Conveyor Height	920±20 (or user specified)	Conveyor Direction	Left → right or right → left (one button switch)
Transmission Speed	0.5-20 m / min or user specified

Features

1. Standard one-key switch transfer direction, flexible and convenient

2. Ergonomic design makes the arm not easy to fatigue

3, the Lane has a bearing wheel, suitable for relatively large board

4. Use smooth and parallel width adjustment, with optional automatic width adjustment

5. Customize the length of the machine according to customer requirements

6. Customized stop board quantity according to customer requirements

7. Easy to replace belt

8, optional import permanent ESD belt

9, standard SMEMA socket;

10. Optional LED lighting device

Technical parameters

This equipment is used for connection for SMT and AL production line ,PCB transfer, inspect, test or electronic component manual plug-in .

Conveyor belt type: round belt or flat belt

Conveyor speed: 0.5-20 m/min or user specified

Power supply and load: 100-230V AC (customer specified), single phase, maximum 50 volts

Transfer height :910±20mm(user specified)

Transmission direction: left-right or right-left (one-key switch)

Company Profile:

Extension Company was established in 2009, a SMT electronic manufacturing service company.
Service customers involved in EMS electronics manufacturing products in various areas. Like smart phone, automotive electronics, earphones, air conditioners, computers and communication tools. These product's workshop planning, production management, quality control and efficiency improvement.
Extension providing SMT solutons including SMT line, SMT machine, SMT stencil printer, reflow oven, wave soldering machine, and THT insertion Machine.

Successful Experience:
Extension's Customer in 60 Countries Around the World
1. We have been helping customers to build a lot of new factories and increase productivity around the world.
2. We help customers solve machine production problems quickly.
3. Became the most reliable SMT partner for you.

For SMT Factory Setup or increase productivity, we can do for you:
1. We provide full SMT solution for You.
2. We provide continuous and reliable supply of spare parts.
3. We provide installation and training services for SMT line.
4. We have wealthy experience on SMT Factory Setup.
5. We can solve SMT problems for you.

FAQ:
Q: What we can do for you?
A: Total SMT Machines and Solution, professional Technical Support and Service.

Q: What brand of machines do you supply?
A: Famous brand. Such as FUJI, ASM, Panasonic, Samsung, JUKI, Yamaha, Heller, DEK, etc.

Q: What is your delivery date?
A. The delivery date is about 30 days after receipt of payment

Q: What your main customers?
A:OSRAM, HUAWEI, TESLA, Inventec, Samsung, Hisense, Foxconn

Q: Why choose us?
A: Leading SMT Supplier in China; Wealthy SMT experience; Professional after-sales service team.

Extension's exhibition moments：
