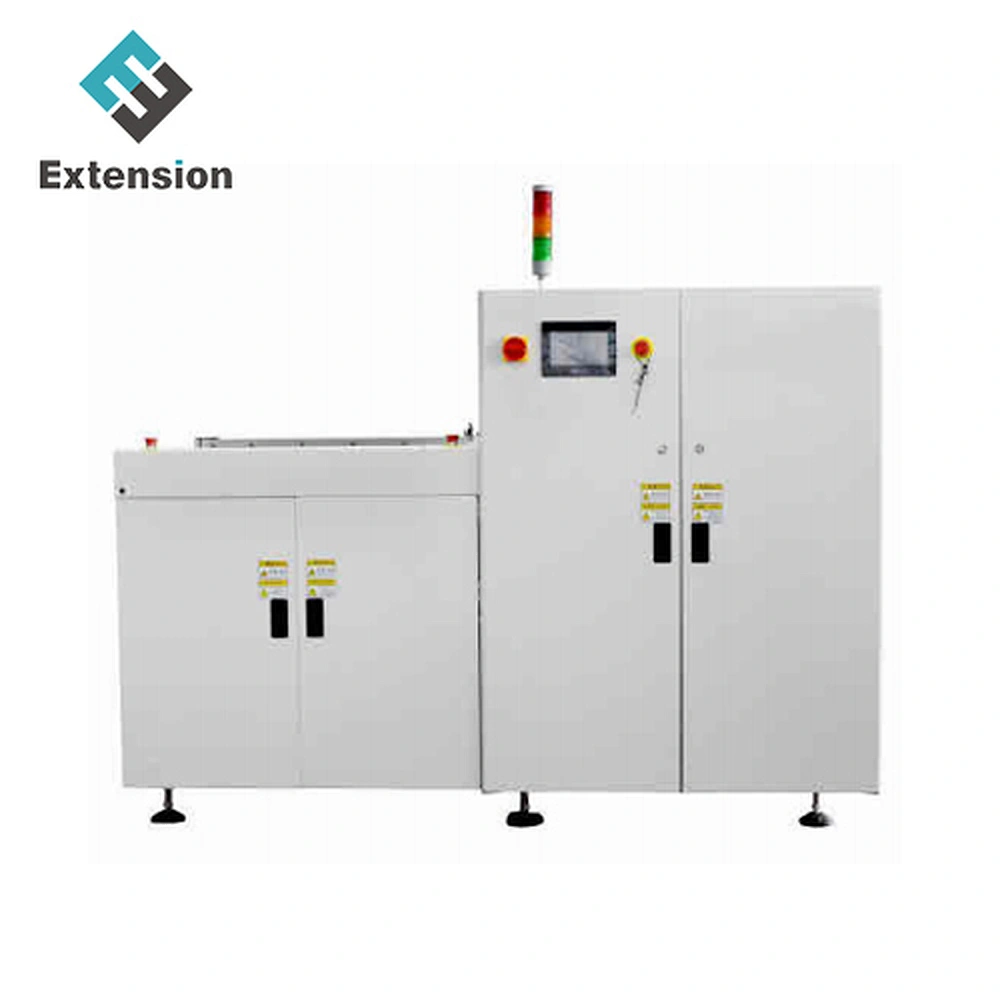

PCB oversize board loader

Model NO. BF610-5G

This equipment is suitable for the upper plate operation of the lamp strip product, the circulating structure

Quantity

Description	This device is suitable for SMT wire head upper plate and post-furnace PCB buffer to adjust the line body beat	Transfer Belt Type	Industrial anti-static belt transmission
Power Source&Consumption	100-230V AC, buffer time can be set to single phase up to 300 volts	Air Source&Consumption	4-6bar, up to 10 liters / minute
Conveyor Height	920±20 (or user specified)	Conveyor Direction	Left → right or right → left (customer specified)
PCB Cache Time	Cache time can be set

Features

1. Strengthen the structure specially for the 5G PCB heavy& big board

2. It integrates the functions of temporary storage, straight through, loader and unloader

3, servo motor + imported ball screw lift and down position, with accurate, reliable, no superposition tolerance advantage.

4. Belt active transmission can effectively avoid damage of PCB surface materials.

5. It can meet the requirements of 8 KG plate carrier, the machine has the function of fault sound and light alarm, and the fault

index troubleshooting of human-machine interface is more intuitive and simple.

6. Standard SMEMA communication interface, convenient for automatic connected operation with other devices

(it can communicate with MES and feedback the status of devices in real time)

Technical parameters

Description: this equipment is suitable for the upper plate operation of the lamp strip product, the circulating structure

does not need changing frame

Conveyor belt type: industrial anti-static belt

PCB board time: less than 10S

Power supply and load: 100-230V AC (user specified), single phase, maximum 300 volts

Air pressure&consumption : 4-6 bar, maximum 10 l/min

Transfer height :910±20mm( customer specified)

Transmission direction;Left-right or right-left（customer specified）
