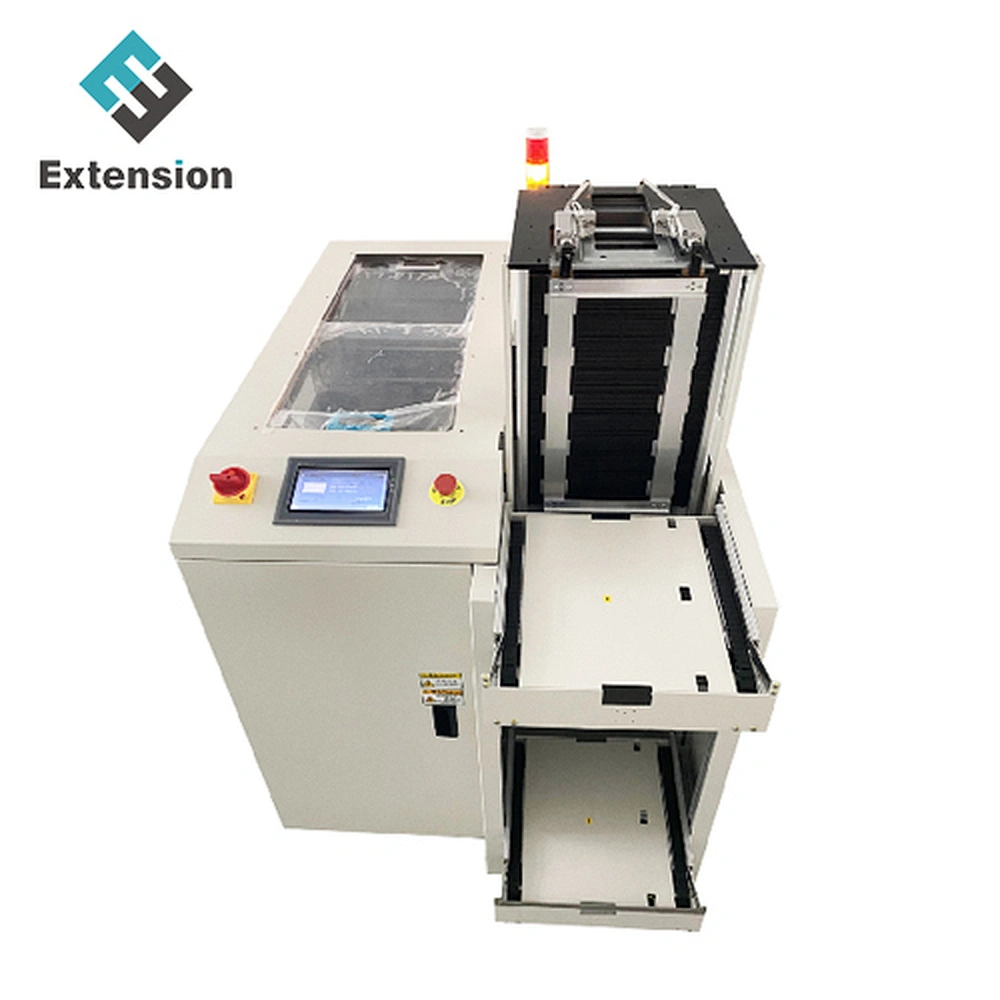

PCB Push and shuttle conveyor machine

Model NO. UL250-DZ

Sound and light alarm, real-time display of alarm information, easy to maintain

Quantity

Features

1,It is used in the back end of SMT line body to collect the board on the rails to magazine or transfer them to the downstream

equipment through the 2-rail track. Dual-trails design, in which the 1 rail will bring the products into the magazine and the

2 rail will transfer the products to the lower-end equipment trail.

2,Compact design, save line space.

3,Multi-in-one, straight through conveyor section X1, Unloader X1, shuttle loader machine X1, to meet different requirements.

4,The force of under plate’s push rod is controlled by the motor, and the force of the push-rod can be set through the

man-machine interface, which can protect the PCB from being damaged.

5,The first rail will unload the product, and the second rail will go straight through. The two-sided substrate can flow out to the

next process for further processing.

6,One - piece transfer trail, improve the stability of the transfer plate.

7,Sound and light alarm, real-time display of alarm information, easy to maintain.

Technical parameters

Shuttle distance: ≤800mm

Air source and electronegative charge: 4-6bar AC220V/ 50/60Hz

Transfer height :920±20mm (user specified)

Direction of transmission: left-right or right-left

Company Profile:

Extension Company was established in 2009, a SMT electronic manufacturing service company.
Service customers involved in EMS electronics manufacturing products in various areas. Like smart phone, automotive electronics, earphones, air conditioners, computers and communication tools. These product's workshop planning, production management, quality control and efficiency improvement.
Extension providing SMT solutons including SMT line, SMT machine, SMT stencil printer, reflow oven, wave soldering machine, and THT insertion Machine.

Successful Experience:
Extension's Customer in 60 Countries Around the World
1. We have been helping customers to build a lot of new factories and increase productivity around the world.
2. We help customers solve machine production problems quickly.
3. Became the most reliable SMT partner for you.

For SMT Factory Setup or increase productivity, we can do for you:
1. We provide full SMT solution for You.
2. We provide continuous and reliable supply of spare parts.
3. We provide installation and training services for SMT line.
4. We have wealthy experience on SMT Factory Setup.
5. We can solve SMT problems for you.

FAQ:
Q: What we can do for you?
A: Total SMT Machines and Solution, professional Technical Support and Service.

Q: What brand of machines do you supply?
A: Famous brand. Such as FUJI, ASM, Panasonic, Samsung, JUKI, Yamaha, Heller, DEK, etc.

Q: What is your delivery date?
A. The delivery date is about 30 days after receipt of payment

Q: What your main customers?
A:OSRAM, HUAWEI, TESLA, Inventec, Samsung, Hisense, Foxconn

Q: Why choose us?
A: Leading SMT Supplier in China; Wealthy SMT experience; Professional after-sales service team.
