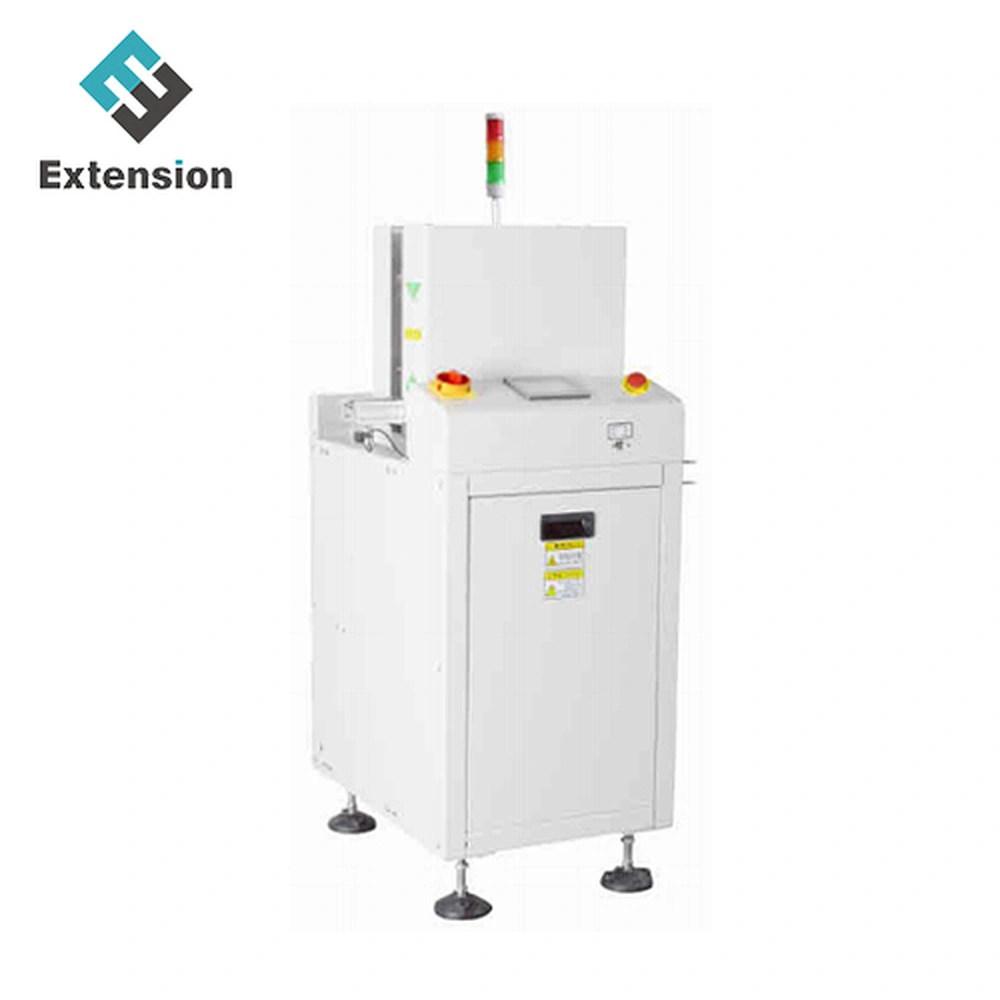

PCB stack board machine

Model NO. DS250

This equipment is used for load of the bare board in SMT production line

Quantity

Features

1，strong and stable design

2，PLC control system

3,Man-machine interface control panel, easy to operate

4,With straight through function

5, Photoelectric sensor control start

6, compatible SMEMA interface

Technical parameters

This equipment is used for load of the bare board in SMT production line

Board passing time: about <6 seconds

Circuit board capacity: can be placed PCB height 150mm

Step space: N/A

Power supply and electrical load: 100-230V AC, single phase, maximum 100 volt ampere

Air pressure&consumption : 4-6 bar, up to 30 l/min

Transfer height :910±20mm(customer specified)

Transmission direction;Left-right or right-left (optional)

Circuit board thickness: 0.5-5 mm

Company Profile:

Extension Company was established in 2009, a SMT electronic manufacturing service company.
Service customers involved in EMS electronics manufacturing products in various areas. Like smart phone, automotive electronics, earphones, air conditioners, computers and communication tools. These product's workshop planning, production management, quality control and efficiency improvement.
Extension providing SMT solutons including SMT line, SMT machine, SMT stencil printer, reflow oven, wave soldering machine, and THT insertion Machine.

Successful Experience:
Extension's Customer in 60 Countries Around the World
1. We have been helping customers to build a lot of new factories and increase productivity around the world.
2. We help customers solve machine production problems quickly.
3. Became the most reliable SMT partner for you.

For SMT Factory Setup or increase productivity, we can do for you:
1. We provide full SMT solution for You.
2. We provide continuous and reliable supply of spare parts.
3. We provide installation and training services for SMT line.
4. We have wealthy experience on SMT Factory Setup.
5. We can solve SMT problems for you.

FAQ:
Q: What we can do for you?
A: Total SMT Machines and Solution, professional Technical Support and Service.

Q: What brand of machines do you supply?
A: Famous brand. Such as FUJI, ASM, Panasonic, Samsung, JUKI, Yamaha, Heller, DEK, etc.

Q: What is your delivery date?
A. The delivery date is about 30 days after receipt of payment

Q: What your main customers?
A:OSRAM, HUAWEI, TESLA, Inventec, Samsung, Hisense, Foxconn

Q: Why choose us?
A: Leading SMT Supplier in China; Wealthy SMT experience; Professional after-sales service team.
