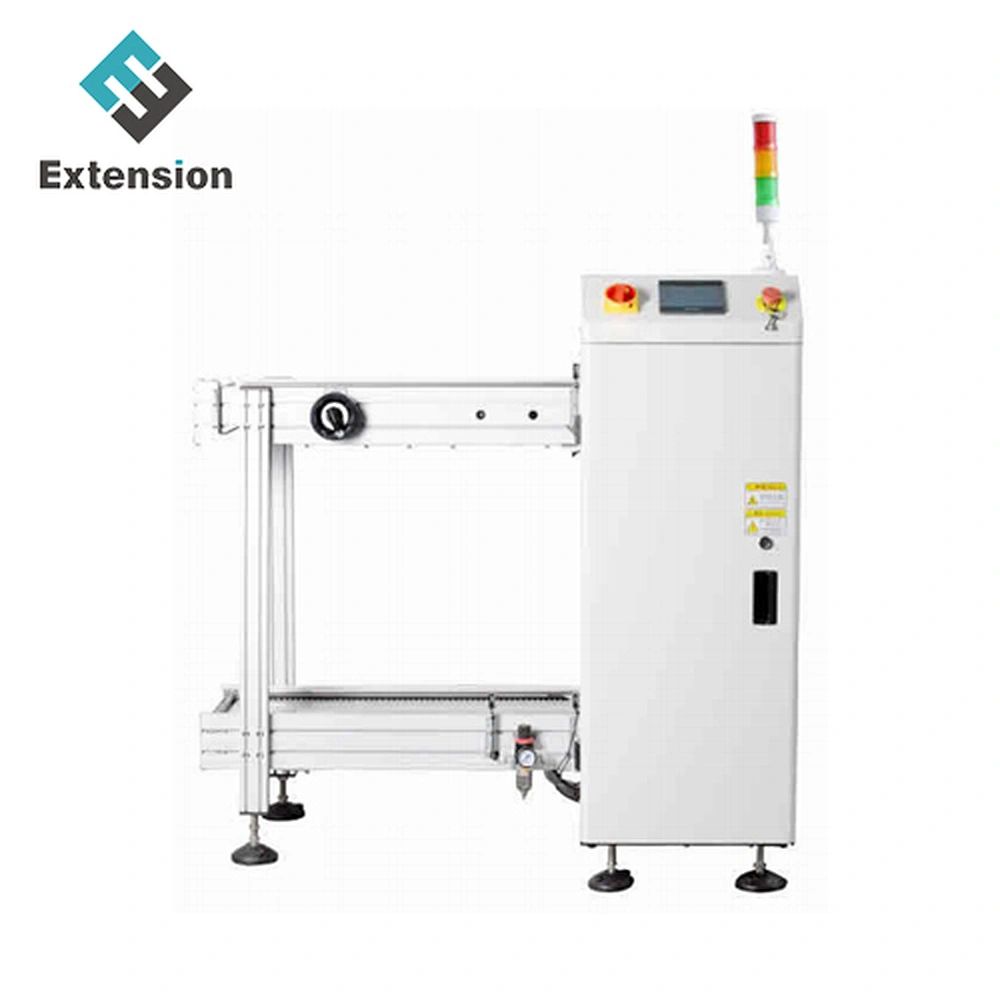

PCB standard loader
L330
This equipment is used to load the circuit board in SMT production line
Quantity
| Description | This device is used for the upper board operation of the circuit board on the SMT production line | Power Source&Consumption | 100-230V AC (user specified), single phase, maximum 300 volts |
| Air Source&Consumption | 4-6bar, up to 10 liters / minute | Conveyor Height | 920±20 (or user specified) |
| Conveyor Direction | Left → right or right → left (customer specified) | Time Feed PCB | About 6 seconds |
| Magazine Change Over Time | About 25 seconds | PCB Thickness | Minimum 0.4 mm |
| No. of Magazine | Out of the box: 2, into the box: 2 (or user specified) Up Conveyor: 2 Magazine, Low Conveyor: 2 Magazine (Or Specify) | Indexing Pitch | 1-4(10mm Pace) |
Features
1. Two magazine can be placed to improve production efficiency
2. PLC control system, touch screen control panel
3. The pneumatic clamp with the width of the magazine can ensure that the position of the magazine is more accurate and effective.
The design can ensure that the PCB will not be damaged
4.Standard SMEMA interface
Technical parameters
This equipment is used to load the circuit board in SMT production line
Load time: about 6 seconds
Magazine replacement time: about 25 seconds
Power supply and load: 100-230V AC (customer specified), single phase, maximum 300 volts
Air pressure&consumption : 4-6 bar, up to10 l/min
Transfer height :920±20mm(customer specified)
Direction of transmission: left-right or right-left
Circuit board thickness: minimum 0.4 mm
Quantity of feed box : 1 pcs in outlet 1pcs in inlet , (or customer specified )
Step space selection: 1-4 (10mm each step)
