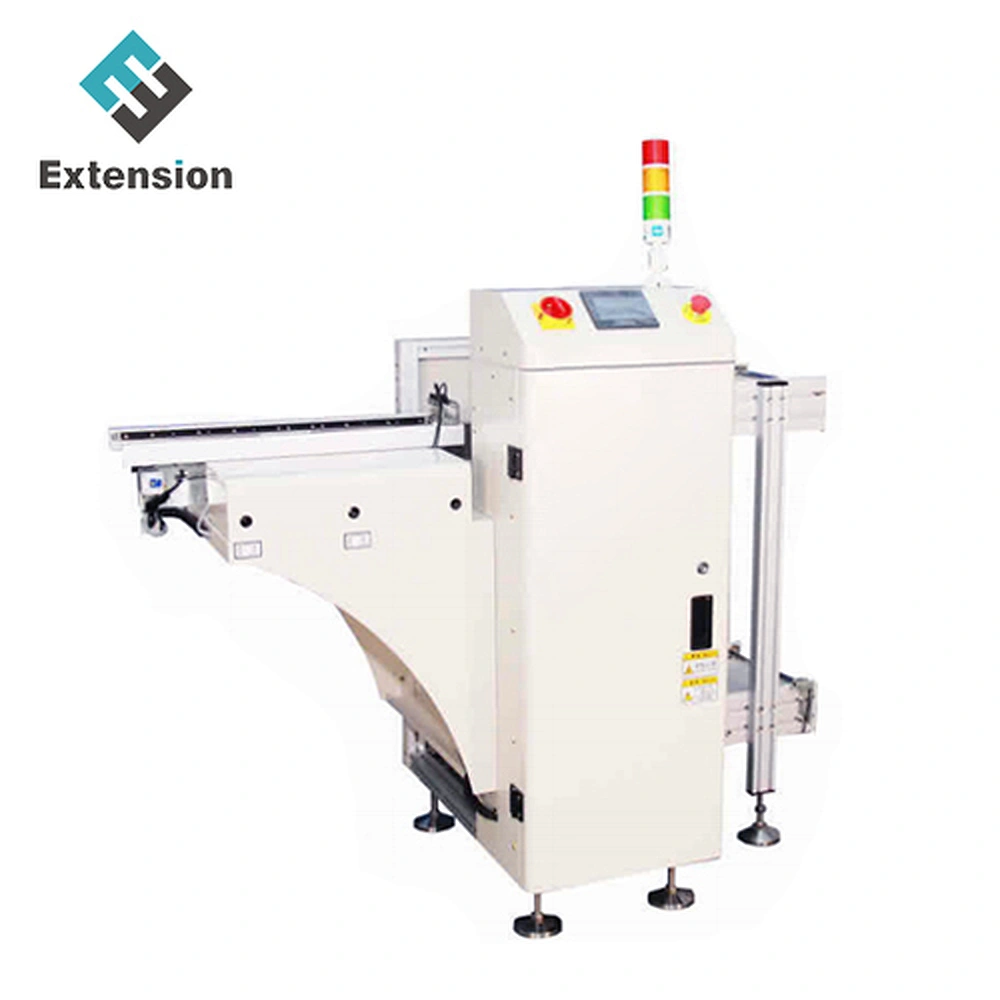

PCB standard Unloader

Model NO. UL250

This equipment is used to load the circuit board in SMT production line

Quantity

Description	This equipment is used for board closing operation of circuit boards on SMT production lines	Power Source&Consumption	100-230V AC (user specified), single phase, maximum 300 volts
Air Source&Consumption	4-6bar, up to 15 liters / minute	Conveyor Height	920±20
Conveyor Direction	Left → Right or Right → Left (Optional)	Time Feed PCB	About 6 seconds
Magazine Change Over Time	About 30 seconds	PCB Thickness	Minimum 0.6 mm
No. of Magazine	Out of the box section: 1, into the box section: 1 (or user specified)	Indexing Pitch	1-4(10mm Pace)

Features

1. Strong and stable design

2. PLC control system

3. including smart system, one-key width adjustment, remote fault monitoring

4. 4 step space (10、20、30、40 mm）

5. Automatic collect PCB from loader

6. Direction can be selected for left-right o right to left

6. Standard SMEMA interface

7. Optional connect VGA car and automatic carry Magazine

Technical parameters

This equipment is used to load the circuit board in SMT production line

Load time: about 6 seconds

Magazine replacement time: about 30 seconds

Power supply and electrical load: 100-230V AC (customer specified), single phase, maximum 300 volts

Air pressure&consumption : 4-6 bar, up to15 l/min

Transfer height :910±20mm(customer specified)

Direction of transmission: left-right or right-left

Circuit board thickness: minimum 0.6 mm

Quantity of feed box : 1 pcs in outlet 1pcs in inlet , (or customer specified )

Step space selection: 1-4 (10 mm each step)
