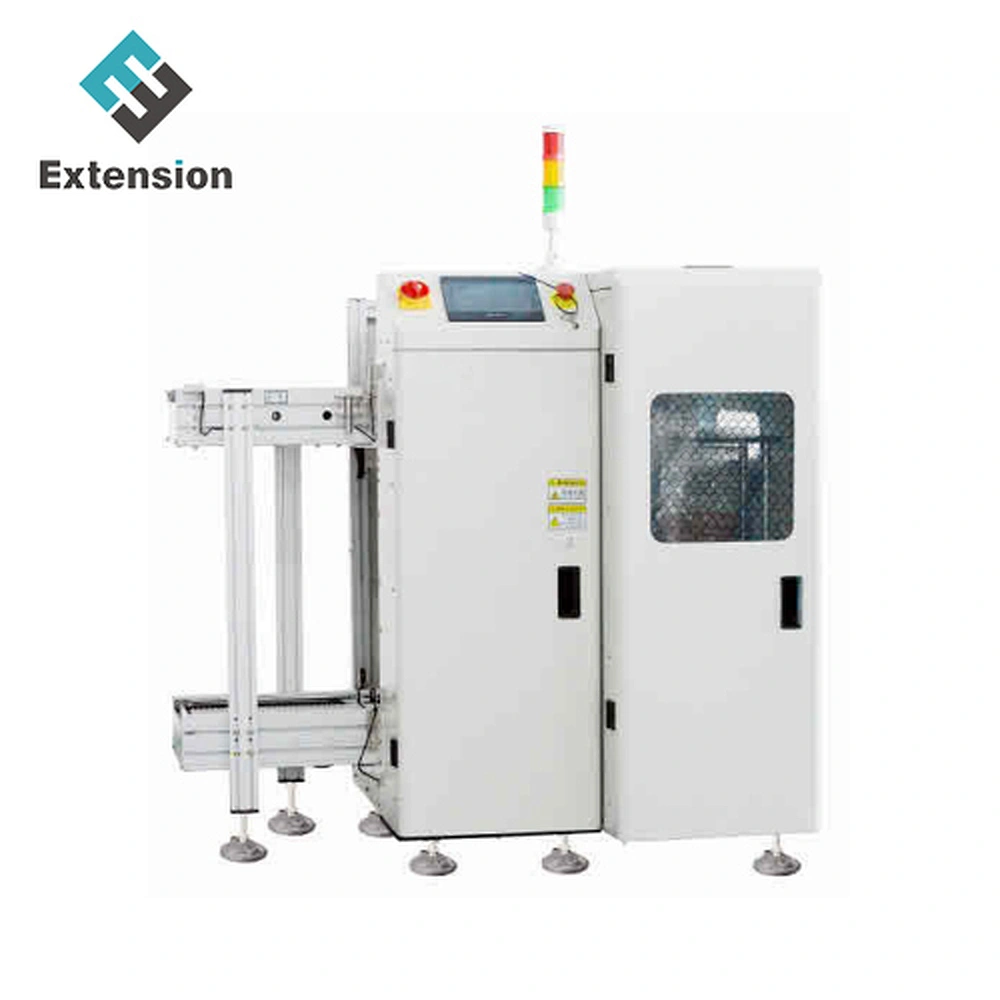

PCB vacuum suction loader
VPL250
This equipment is used to load the circuit board in SMT production line
Quantity
| Description | This device is used for the upper board operation of the circuit board on the SMT production line | Power Source&Consumption | 100-230V AC (user specified), single phase, maximum 300 volts |
| Air Source&Consumption | 4-6bar, up to 10 liters / minute | Conveyor Height | 920±20 (or user specified) |
| Conveyor Direction | Left → right or right → left (customer specified) | Time Feed PCB | About 6 seconds |
| Magazine Change Over Time | About 25 seconds | PCB Thickness | Minimum 0.4 mm |
| No. of Magazine | Out of the box: 2, into the box: 2 (or user specified) Up Conveyor: 2 Magazine, Low Conveyor: 2 Magazine (Or Specify) | Indexing Pitch | 1-4(10mm Pace) |
Features
1. Strong and stable design
2. PLC control system
3, including smart system, one-key width adjustment, remote fault monitoring
4, 4 step space (10、20、30、40 mm）
5. Its have function of suck and feed board
6,Direction can be selected for left-right o right to left
7，Standard SMEMA interface
Technical parameters
This equipment is used to load the circuit board in SMT production line
Load time: about 6 seconds
Magazine replacement time: about 25 seconds
Power supply and electrical load: 100-230V AC (customer specified), single phase, maximum 300 volts
Air pressure&consumption : 4-6 bar, up to10 l/min
Transfer height :910±20mm (customer specified)
Direction of transmission: left-right or right-left
Circuit board thickness: minimum 0.4 mm
Quantity of feed box : 1 pcs in outlet 1pcs in inlet , (or customer specified )
Step space selection: 1-4 (10 mm each step)
