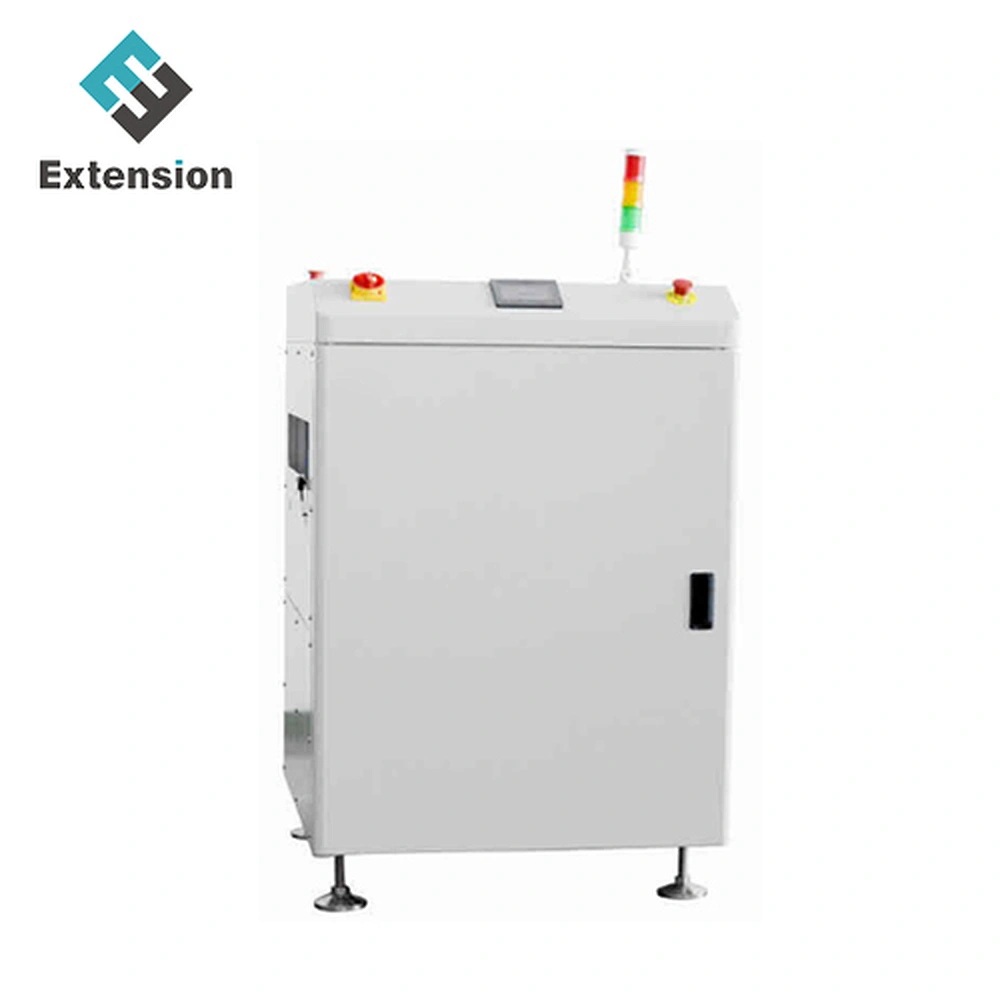

PCB Vertical turn machine

Model NO. HT250SL

This equipment is suitable for changing the direction of PCB board at the turn or intersection point of production line

Quantity

Description	This device is used to change the direction of the PCB in corners or intersections of the production line.	Power Source&Consumption	100-230V AC (user specified), single phase, maximum 250 VA
Air Source&Consumption	4-6bar, up to 10 liters / minute	Conveyor Height	920±20 (or user specified)
Conveyor Direction	Left → Right or Right → Left (Optional)	PCB Thickness	Minimum 0.6 mm
Cycle Time	About 5 seconds

Features:

1. Strong and stable design

2. PLC control system, Human-machine interface control panel for easier operation

3. The sealing type design of the rotating mechanism ensures the highest safety protection grade. The top safety cover can be

opened to facilitate the maintenance of the machine

4. Smooth and precise rotation of (a motor or cylinder).

5. Parallel and smooth width adjustment (screw rod)

6. the circuit board transport direction can be determined according to customer needs

7. With the connection of Transition section, a double line can use one reflow oven , Compared with the large translation scheme,

it has the advantage of fast speed

8.90 or 180 degrees optional

9. Compatible with SMEMA interface

Technical parameters:

Description: this equipment is suitable for changing the direction of PCB board at the turn or intersection point of production line

Cycle time: about 5 seconds

Power supply and load: 100-230V AC (user specified), single phase, maximum 300 volts

Air pressure&consumption :4-6 bar, maximum 10 l/min

Transfer height :910±20(mm)(customer specified)

Transfer direction;Left-right or right-left

Board thickness: 0.6mm minimum

Company Profile:

Extension Company was established in 2009, a SMT electronic manufacturing service company.
Service customers involved in EMS electronics manufacturing products in various areas. Like smart phone, automotive electronics, earphones, air conditioners, computers and communication tools. These product's workshop planning, production management, quality control and efficiency improvement.
Extension providing SMT solutons including SMT line, SMT machine, SMT stencil printer, reflow oven, wave soldering machine, and THT insertion Machine.

Successful Experience:
Extension's Customer in 60 Countries Around the World
1. We have been helping customers to build a lot of new factories and increase productivity around the world.
2. We help customers solve machine production problems quickly.
3. Became the most reliable SMT partner for you.

For SMT Factory Setup or increase productivity, we can do for you:
1. We provide full SMT solution for You.
2. We provide continuous and reliable supply of spare parts.
3. We provide installation and training services for SMT line.
4. We have wealthy experience on SMT Factory Setup.
5. We can solve SMT problems for you.

FAQ:
Q: What we can do for you?
A: Total SMT Machines and Solution, professional Technical Support and Service.

Q: What brand of machines do you supply?
A: Famous brand. Such as FUJI, ASM, Panasonic, Samsung, JUKI, Yamaha, Heller, DEK, etc.

Q: What is your delivery date?
A. The delivery date is about 30 days after receipt of payment

Q: What your main customers?
A:OSRAM, HUAWEI, TESLA, Inventec, Samsung, Hisense, Foxconn

Q: Why choose us?
A: Leading SMT Supplier in China; Wealthy SMT experience; Professional after-sales service team.

Extension's exhibition moments：
